TE-CTR315K KELVIN type bushing adapter



Adapters for 12UNC transformer bushings



From 1.5 "to 5", now available in Kelvin version.



Quick connection to transformer bushings



High accuracy

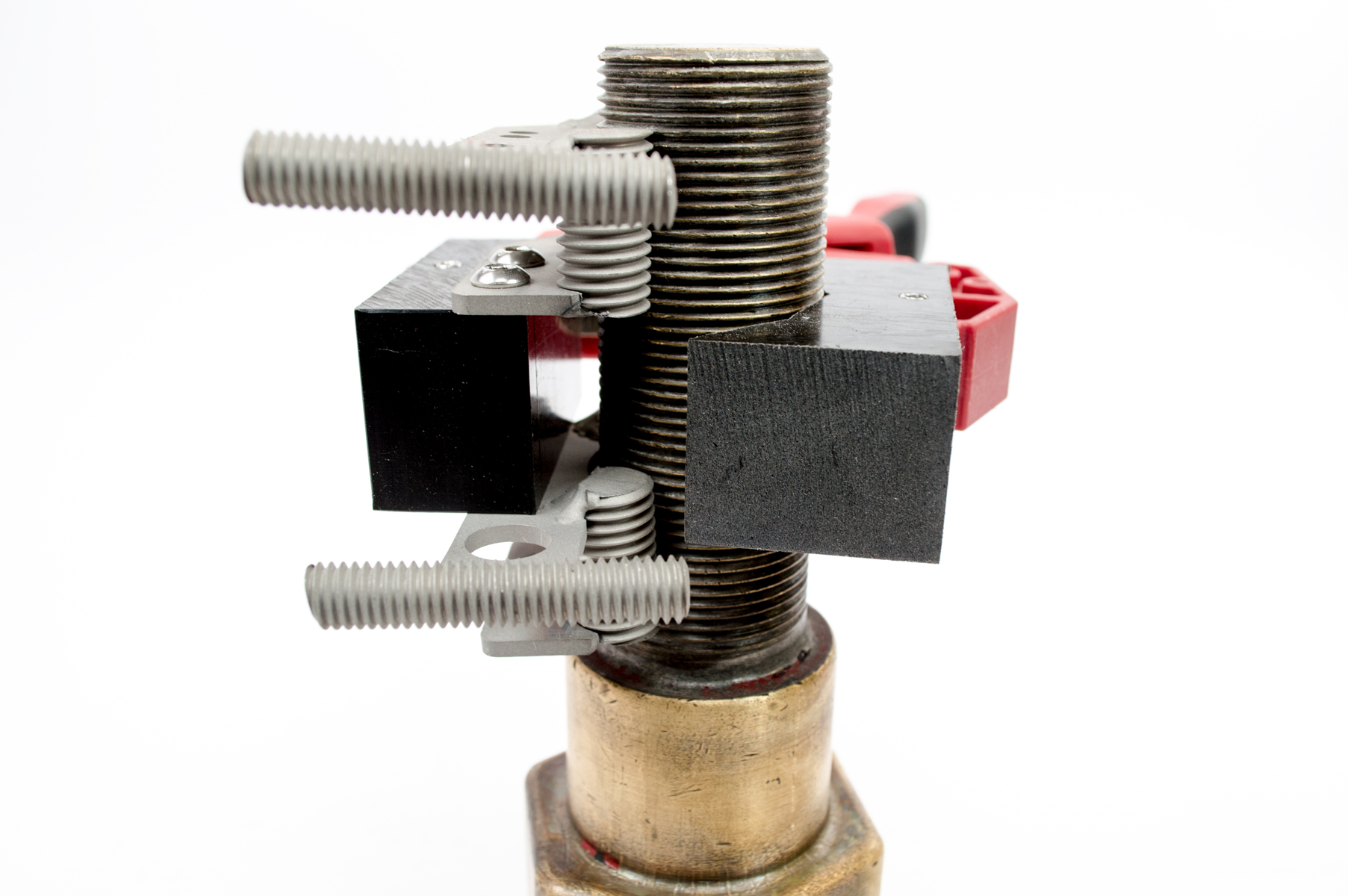

Allows connection to bushings of transformers with 12UNC threads up to 5 '' in diameter



Fiberglass reinforced nylon clamps adjustable between 1.5 "and 5"





Comment utiliser les TE-CTR315



1. Lorsque vous avez accès aux traversées à filets 12UNC

2. Installez et laissez en place les 7 adaptateurs aussi longtemps que néccessaire (3H 3X + le neutre)  Les plaques de contact sont en SS316 et résistent aux intempéries

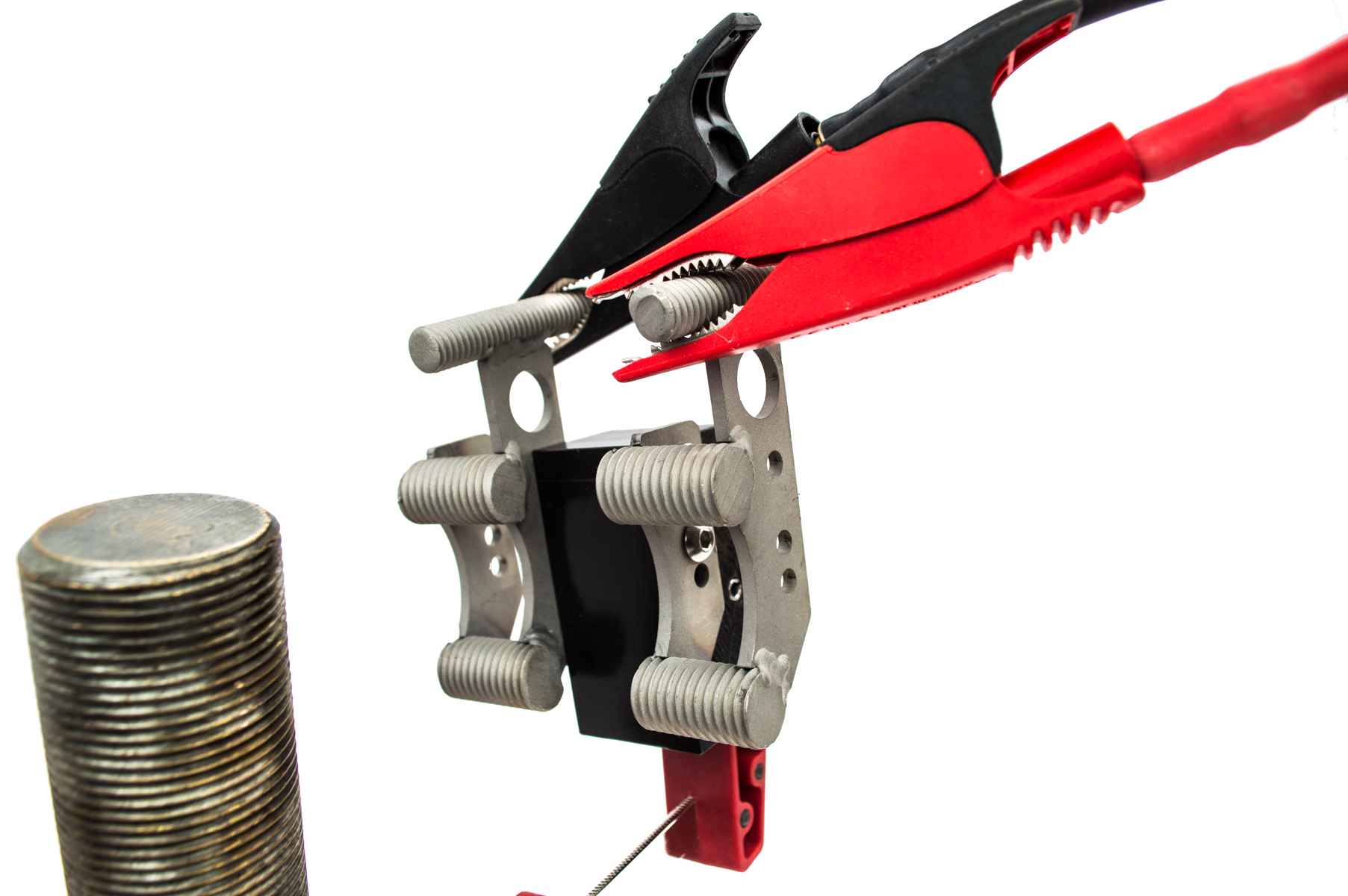

3. Faite tous les essais avec vos instruments et câbles actuels qui sont possiblement trop petits pour les traversées

Ordering info / .pdf document
Ordering info / .pdf document

Series 315 adapters are available individually or as a set with the number of items you desire.

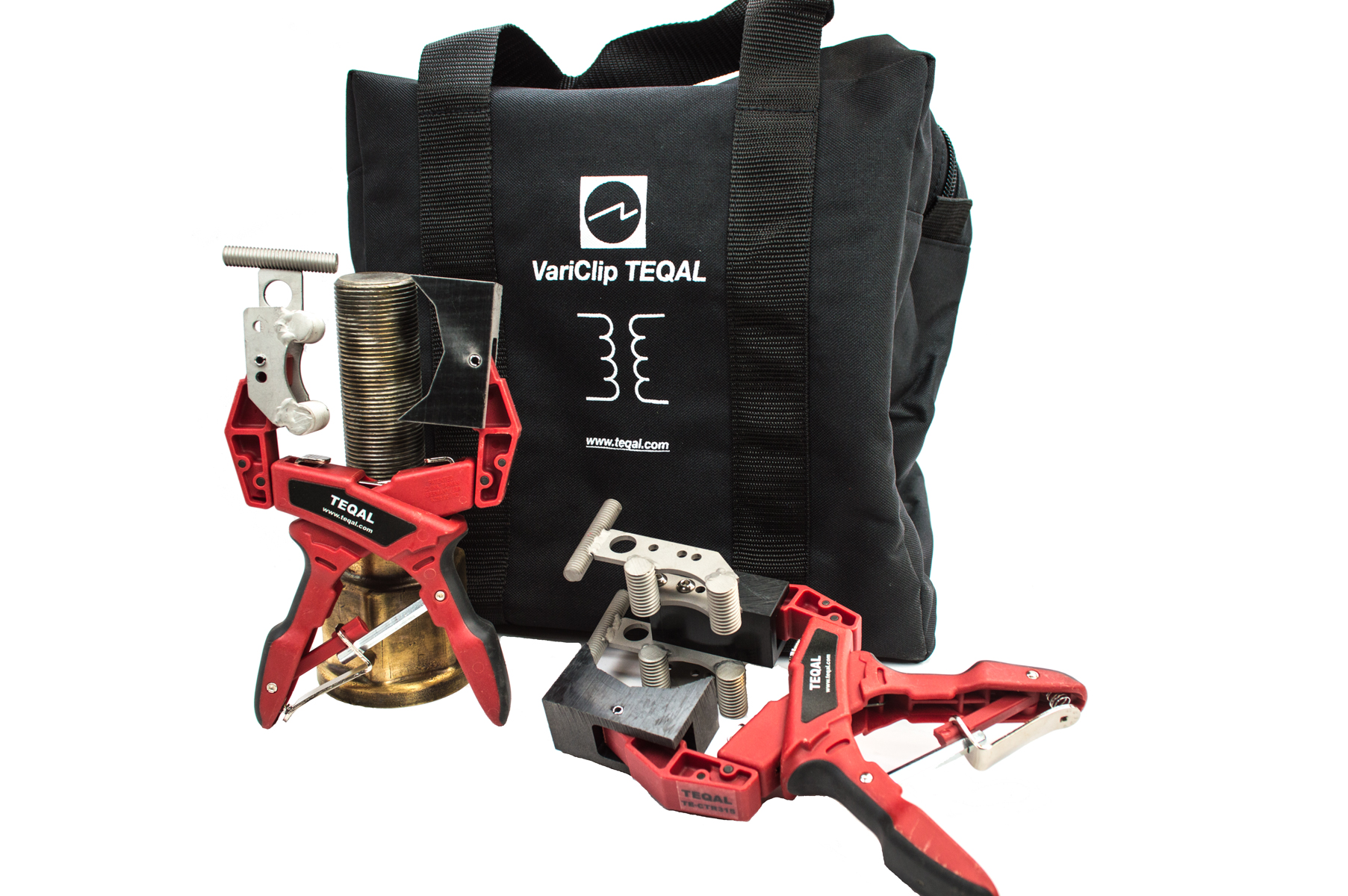

Carrying bags are included with every order of 7 clips.





This clamp can be used very well with one hand.



It has a fiberglass reinforced nylon body, nylon jaws, and a steel quick release and locking mechanism.



When the release lever is pressed, the clamp opens with a spring.



The force exerted by the hand on the clamp is transferred directly to the part clamped - ratio of 1: 1 -, and the clamp automatically locks to the applied pressure.



Jaws adjust to match bushing diameter to a maximum of approximately 5 ”.

It supports a pressure of 100 lbs.
